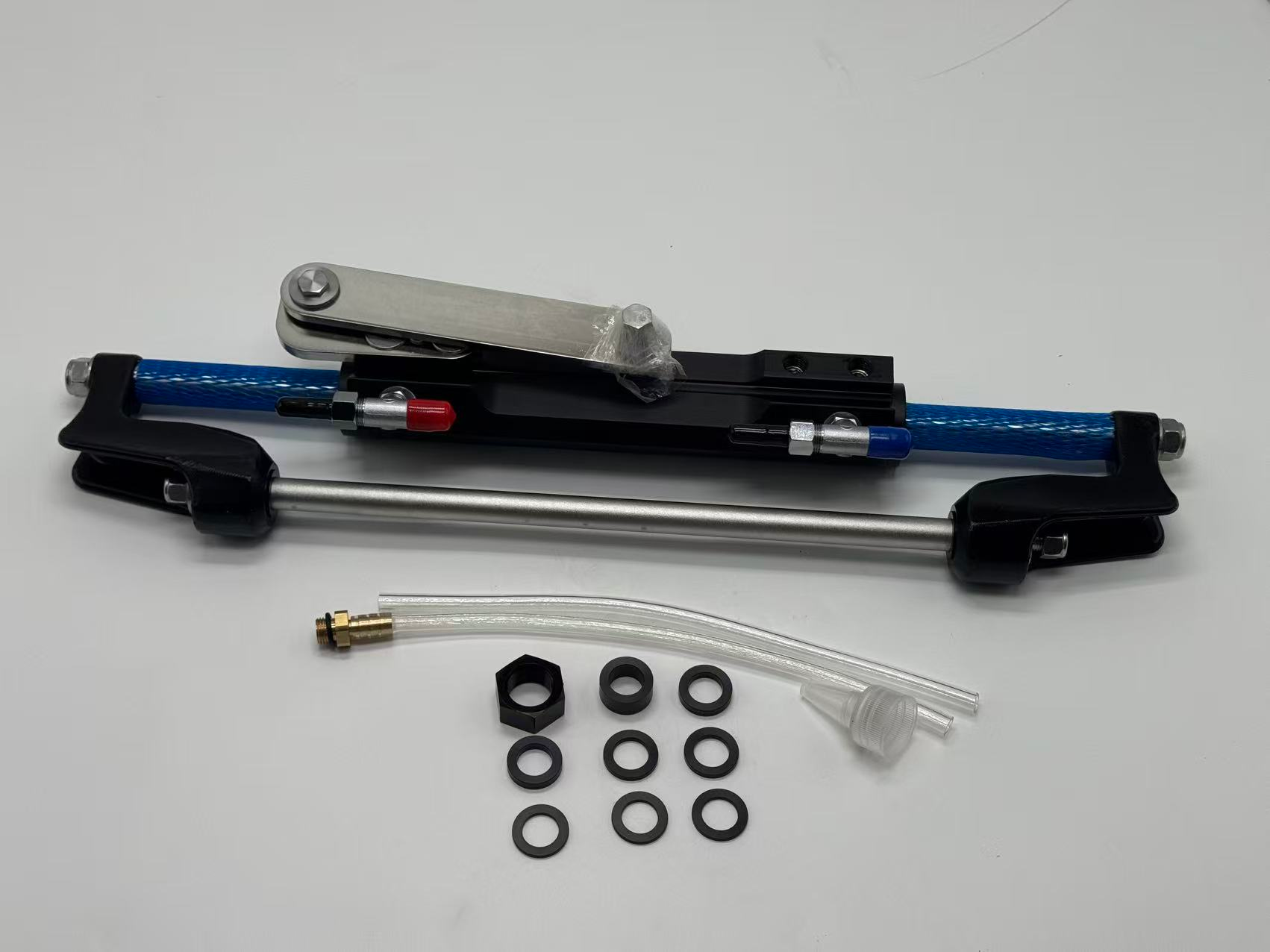

Outboard Hydraulic Steering Cylinder
availability:
in Stock(999)
Package Dimensions：
25.6*7*5.1 inches;
12.1 Pounds
- Main colors: Black
- Release date:
- Product number:
Product Introduction :
Hydraulic Steering Cylinders for Vessels Up to 250 Horsepower,The cylinder supports a maximum working pressure of 1000 PSI.
The core components are manufactured from anodized aluminum alloy, stainless steel and nickel-plated copper, delivering outstanding corrosion resistance for vessels operating in high salt spray environments. Equipped with wear-resistant sealing materials, its multi-layer composite sealing structure effectively prevents hydraulic oil leakage and greatly extends the service life of the equipment.
This outboard steering cylinder features an innovative rocker arm connection design. Its travel stroke is optimized and shortened to 7 inches, enabling installation within compact engine compartments. It serves as a steering support unit compatible with all outboard motors rated 250 horsepower and below.
Steering Mechanism:
Cylinder bore diameter: 32 mm
Piston rod diameter: 16 mm
Total steering stroke: 200 mm
