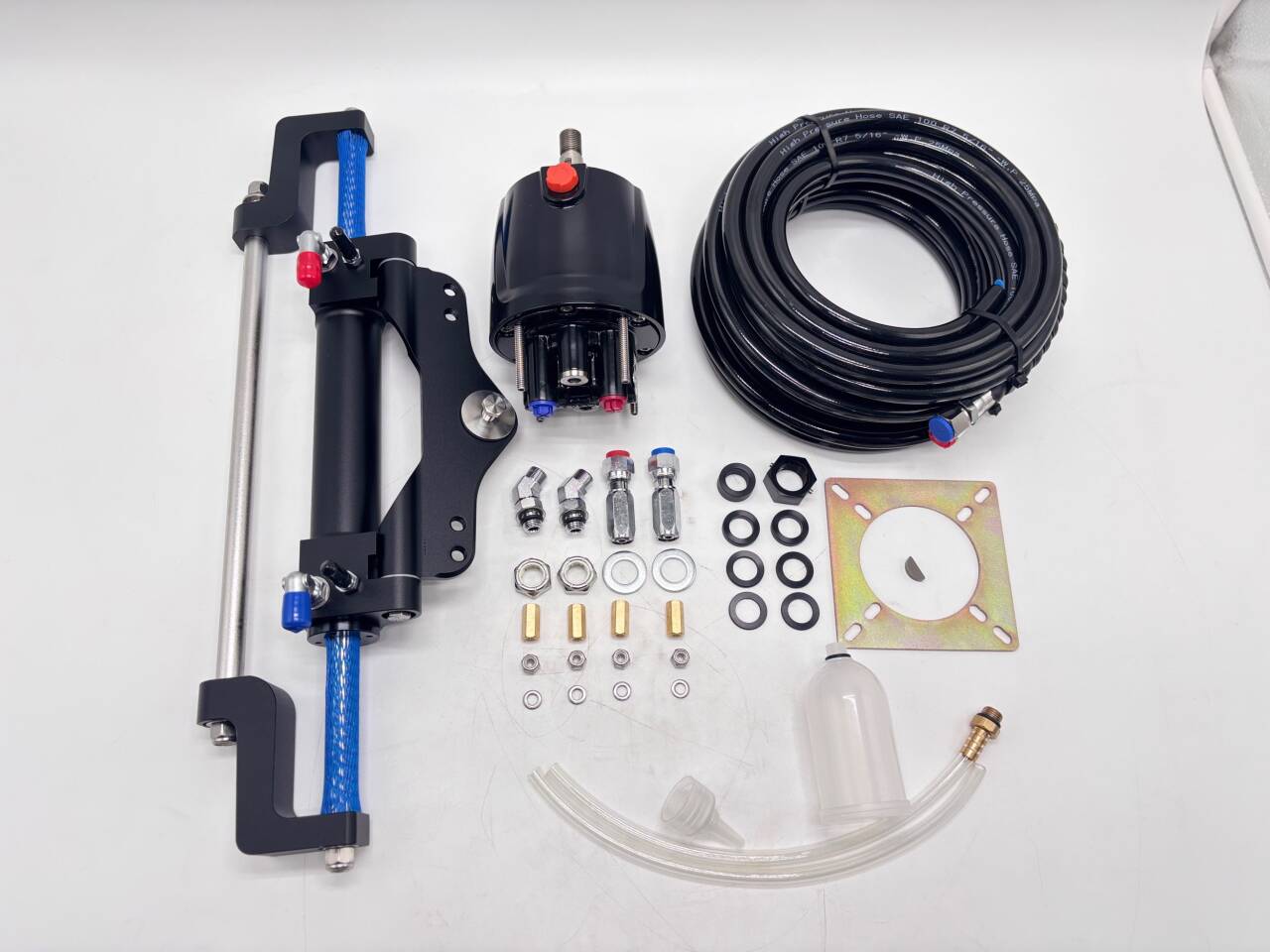

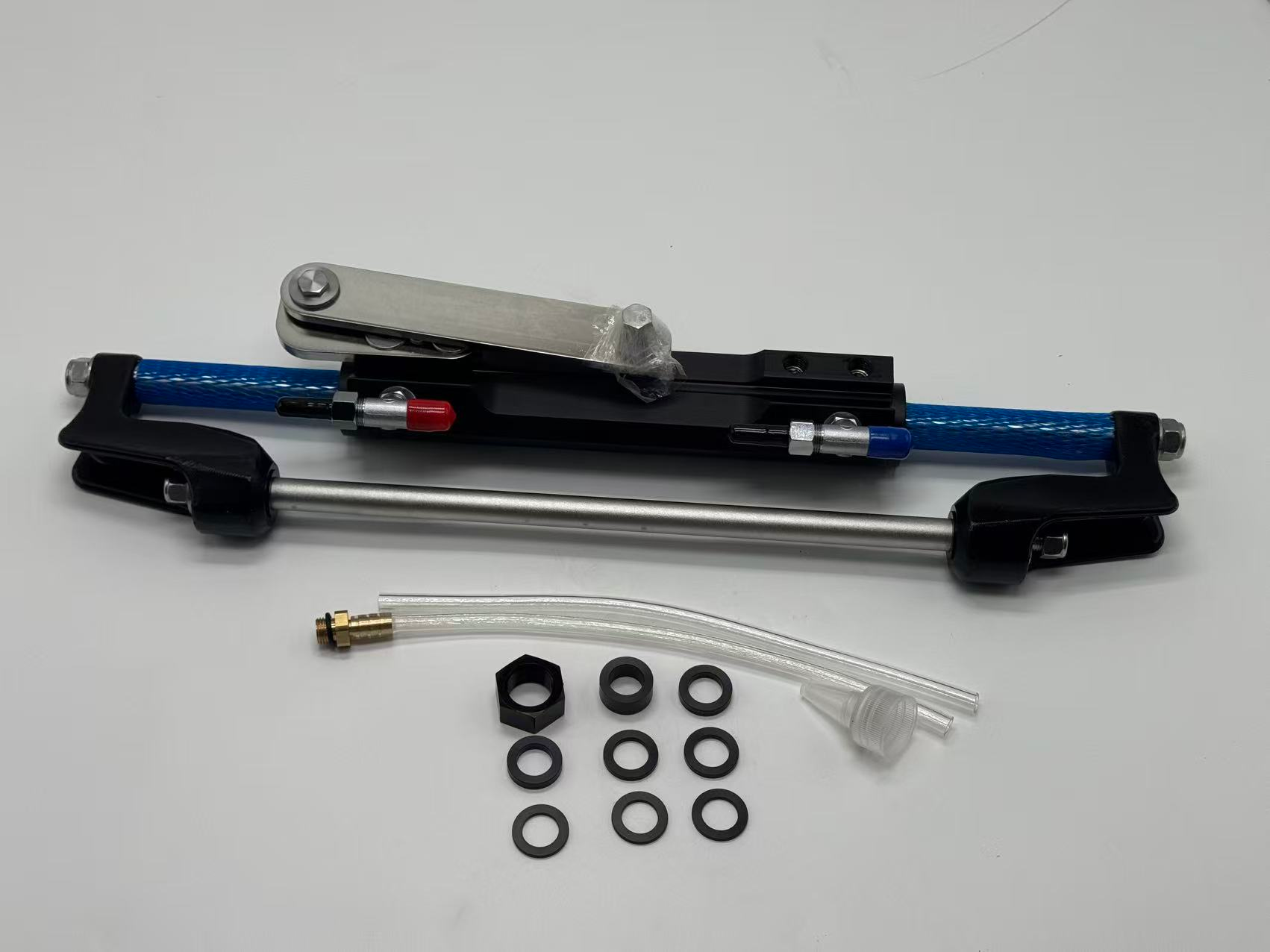

Outboard Hydraulic Steering Cylinder
availability:
in Stock(999)
Package Dimensions：
25.6*7*5.1 inches;
9.3 Pounds
- Main colors: Black
- Release date:
- Product number:
Product Introduction :
Hydraulic Steering Cylinders for Vessels Up to 300 Horsepower,The cylinder supports a maximum working pressure of 1000 PSI.
Core components are constructed from anodized aluminum alloy, stainless steel and nickel-plated copper, delivering superior corrosion resistance for watercraft operating in high salt spray environments. Fitted with wear-resistant sealing materials, its multi-layer composite sealing structure effectively stops hydraulic oil leakage and greatly extends equipment service life.This outboard steering cylinder adopts a through-shaft connection design, compatible with most outboard engines on the market. As a steering support unit, this product fits all outboard motors with a rated power of 300 horsepower (HP) or less.
Steering Mechanism:
Cylinder bore diameter: 35 mm
Piston rod diameter: 18 mm
Total steering stroke: 200 mm
